Fluid Extractor
MULTIPLE OPERATIONS, ONE MACHINE!
KineSpin™ fluid extractors offer solutions for fluid recovery, chip wringing, sludge extraction and parts cleaning. With appropriate pans and accessories you can take your fluid extractor from chip wringing one week to sludge extraction the next.
REDUCED FLUID PURCHASES • HIGHER SCRAP VALUE • NO HAZARDOUS MEDIA • COMPACT FOOTPRINT • DURABLE • LOW MAINTENANCE
THE VERSATILITY YOU WANT AND THE PERFORMANCE YOU NEED
Washing/Drying
Chip Wringing
Sludge/Swarf Extraction
PROVEN PERFORMANCE
- Direct drive to interior components for 400-1100 series
- Rapid acceleration up to 400 G’s
- High output up to 3,000 lbs/hour
DURABLE CONSTRUCTION
- Years of trouble-free performance
- Proven robust design
- Rugged ball bearing spindle
VERSATILITY
- Various basket designs for specific applications
- Process tanks – flat bottom or vertical
- Heater units available with thermostat
See it in Action
Explore Features
KINESPIN ENGINEERS ARE AVAILABLE TO HELP YOU CHOOSE THE BEST EQUIPMENT FOR YOUR SPECIFIC NEEDS
| 301 | 601 | 401/402 | 1100/1101 | |
|---|---|---|---|---|
| Load Weight Capacity (lbs) | 75 | 130 | 225 | 425 |
| Load Liquid Capacity (gal) | 5 | 10 | 16 | 33 |
| Maximum VFD Speed (RPM) | 1200 | 1100 | 1200 | 900 |
| Maximum G's | 327 | 343 | 470 | 345 |
| Wringer Basket Diameter (in) | 16 | 20.5 | 23 | 30 |
| Wringer Basket Depth (in) | 9 | 15 | 15 | 14 |
CHOOSE THE SIZE AND BUILDING BLOCKS TO FIT YOUR APPLICATION
-

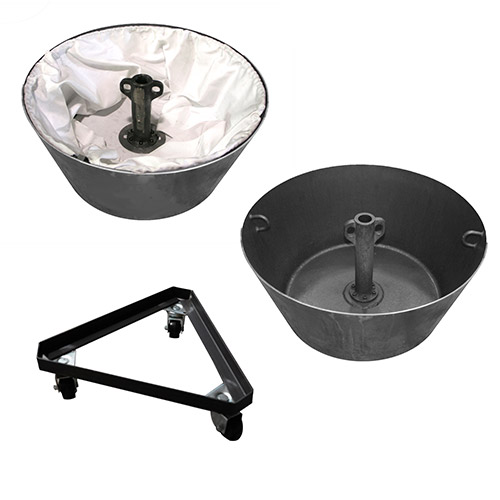

Pans, Baskets, Dollies
-
Pan Hoist
-
Safety Lock with HMI
-
Heater
-
Dump Arm
-
Capture Tanks
